Production of a marine engine through joint development with AVL
For more than 50 years, HD Hyundai Infracore has been building industrial engines that stand out for their durability, reliability and quality and our service network ensures the care and maintenance of the machines.
The portfolio is constantly being expanded, most recently in the compact engine segment with displacements of between 1.8 and 3.4 liters. They are used wherever robustness, reliability and maximum economy are required – with or without a diesel particulate filter (DPF). The low-emission diesels for industrial applications meet the most stringent environmental and ecological requirements of the extremely strictly regulated markets in North America and Europe.
HD Hyundai Infracore manufactures diesel engines for industrial applications and agricultural machinery as well as for generators or marine applications with displacements between 1 and 22 liters. The modern super-compact engines of the G2 series meet the latest exhaust emission standard of the American TIER 4 Final as well as the European regulations according to stage 3B or stage IV and stage V.
In addition, Hyundai diesel engines will be available as ready-to-run hybrid units in the very near future.
Industrial Applications

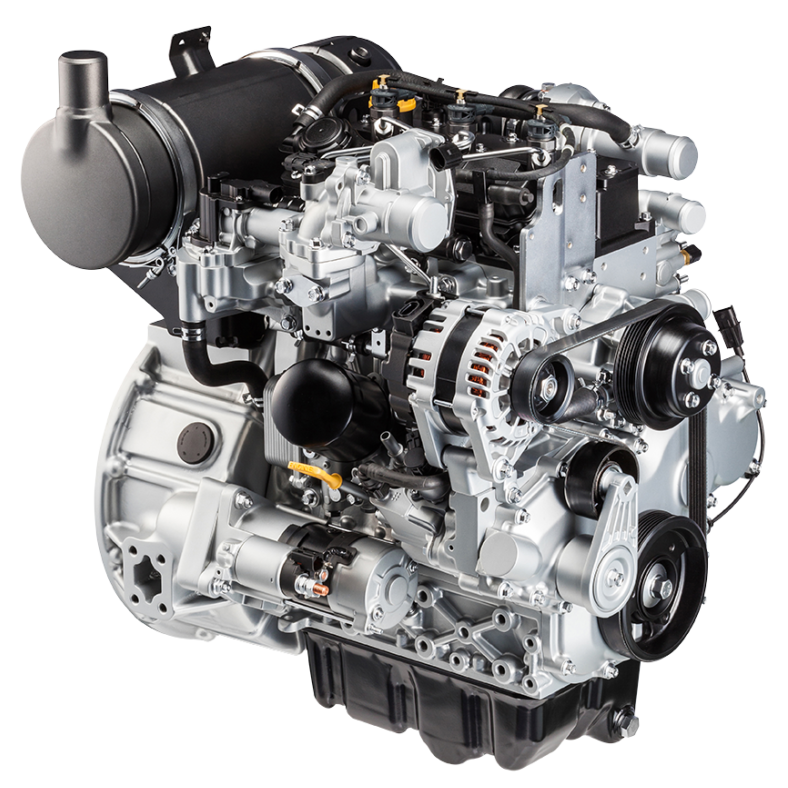

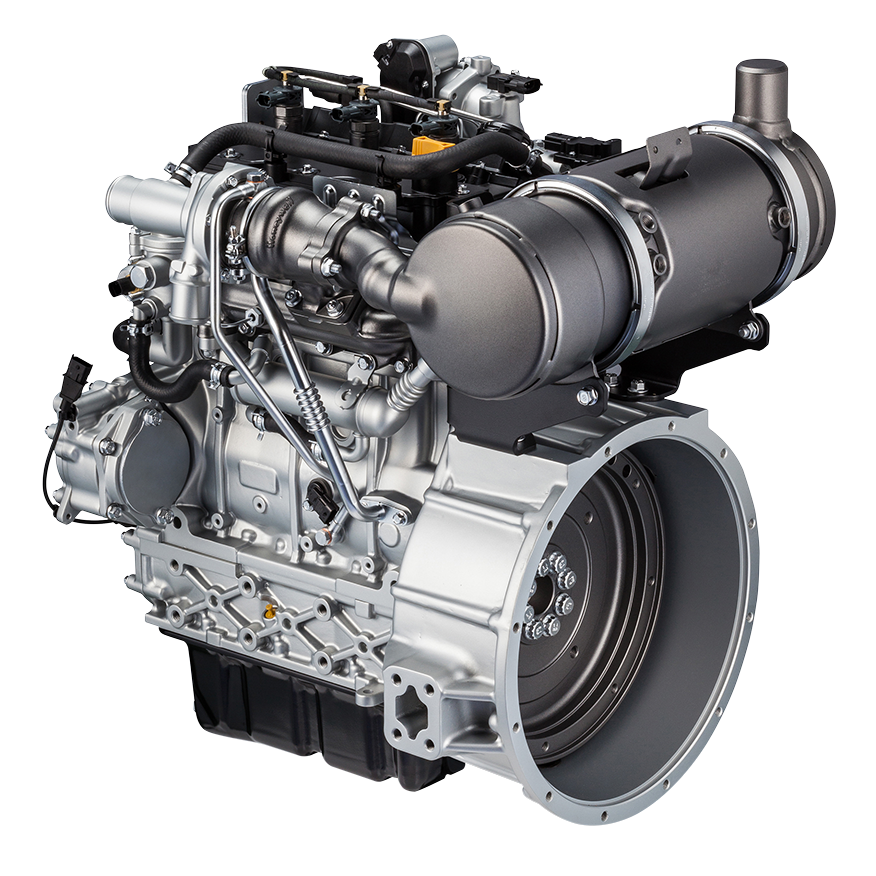

D18 Stage V
HD Hyundai Infracore
Power HP (kW): 60.4 (45)
Speed (rpm): 2500
Dimension (mm): 524 x 573.5 x 673

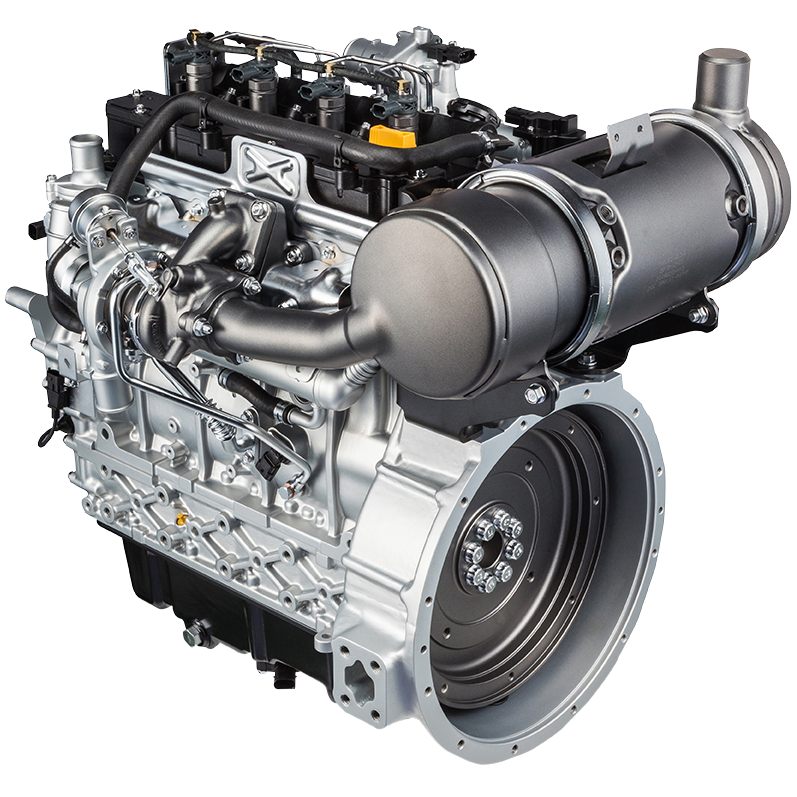

D24 Stage V
HD Hyundai Infracore
Power HP (kW): 74 (55)
Speed (rpm): 2600
Dimension (mm): 556 x 673.4 x 690

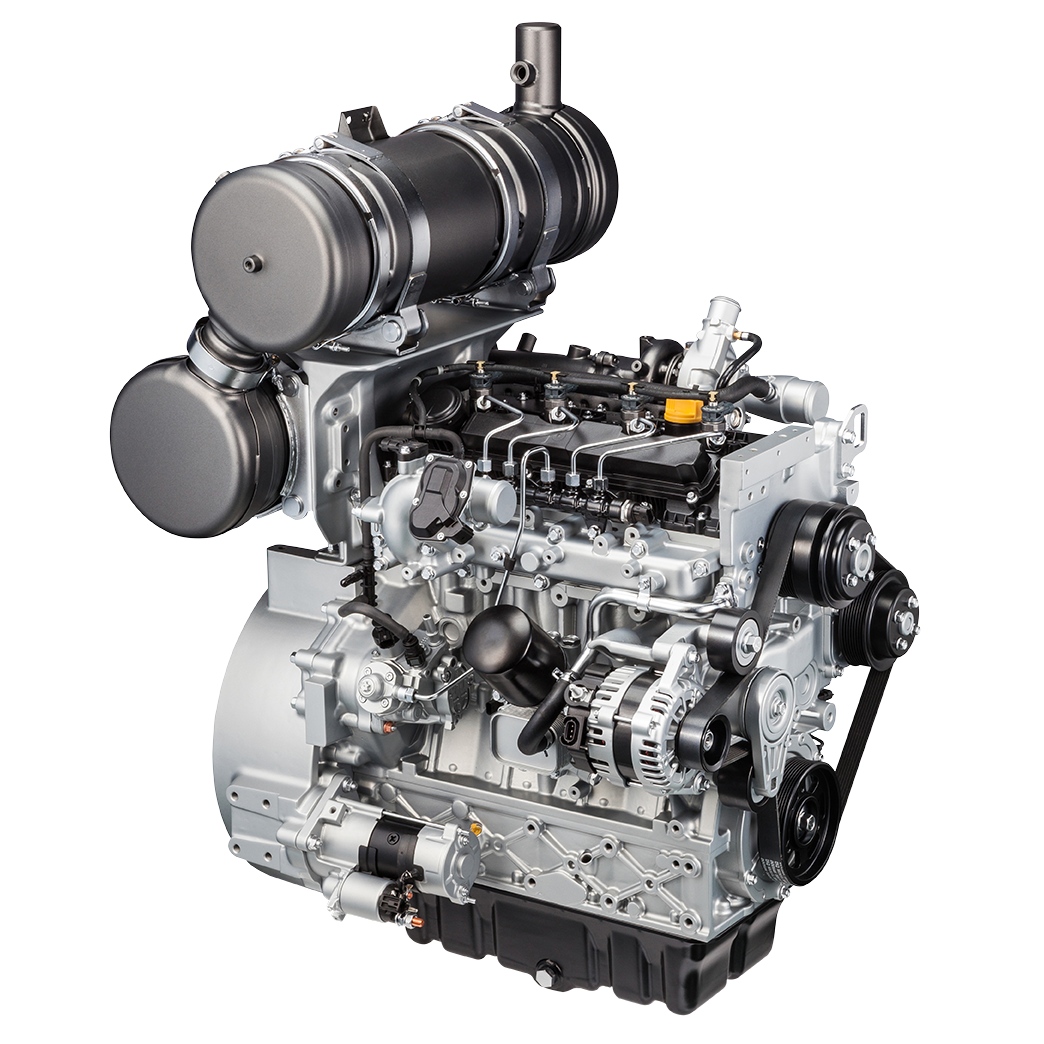

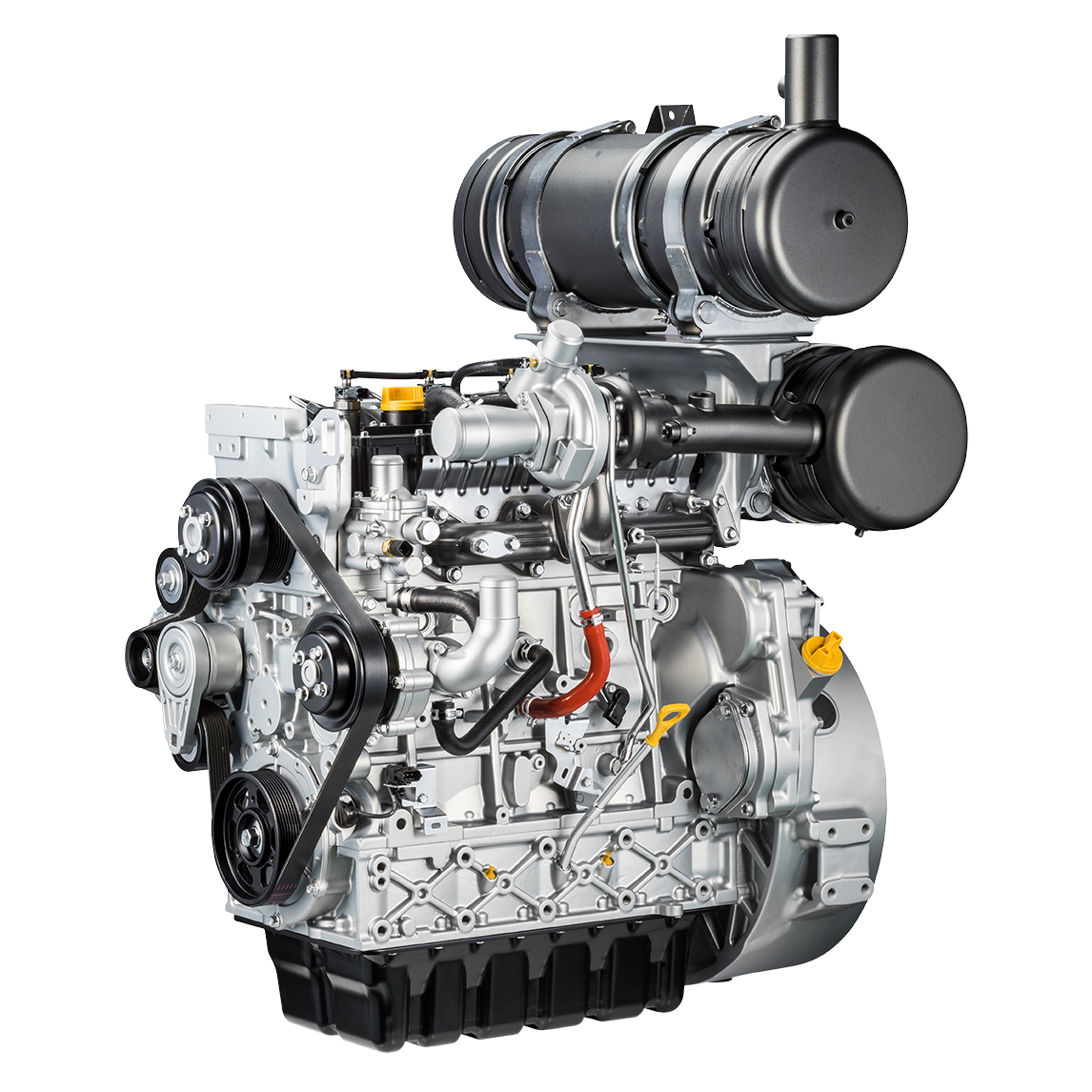

D34 Stage V
HD Hyundai Infracore
Power HP (kW): 135 (100.7)
Speed (rpm): 2400
Dimension (mm): 580 x 701 x 769
download : “Data Sheet D34 Stage V No SCR”
download : “Data Sheet D34 Stage V SCR
D18 Tier 4 Final
HD Hyundai Infracore
Power HP (kW): 60.4 (45)
Speed (rpm): 2800
Dimension (mm): 524 x 573.5 x 673
D24 Tier 4 Final
HD Hyundai Infracore
Power HP (kW): 74 (55)
Speed (rpm): 2600
Dimension (mm): 556 x 673.4 x 690
D34 Tier 4 Final
HD Hyundai Infracore
Power HP (kW): 135 (100.7)
Speed (rpm): 2400
Dimension (mm): 580 x 701 x 769
Engines for Generating Sets
D18 Stage V – Gen Set Engine
HD Hyundai Infracore
Power HP (kW): 30(41) / 27(37)
Speed (rpm): 1500
Dimension (mm): 728 × 574 × 730

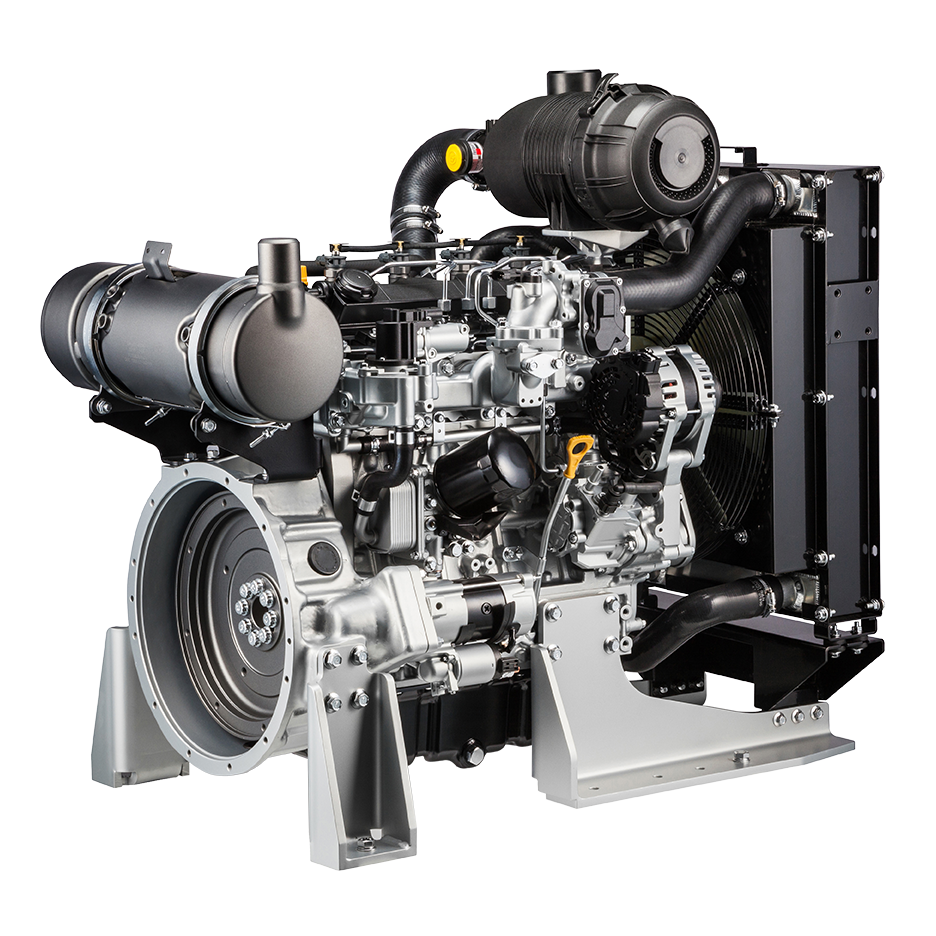

D24 Stage V – Gen Set Engine
HD Hyundai Infracore
Power HP (kW): 48(65)
Speed (rpm): 1500
Dimension (mm): 828 × 576 × 722
D34 Stage V – Gen Set Engine
HD Hyundai Infracore
Power HP (kW): 78(104)
Speed (rpm): 1500
Dimension (mm): 936 × 690 × 1.140
